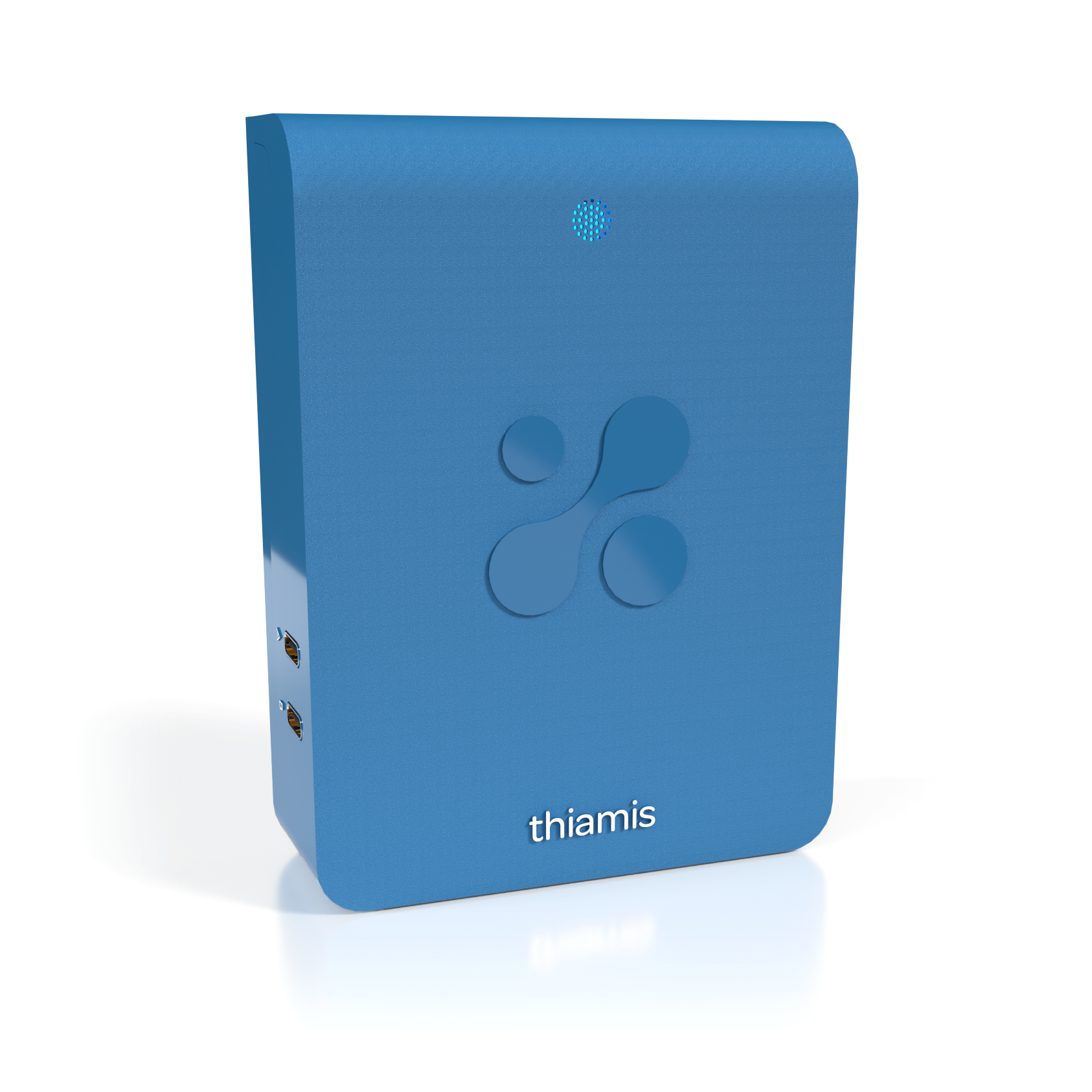

Aethair Thiamis IoT Device

Environmental Monitoring

The Thiamis has been known by industry professionals for more than a decade, as it has been the only device that enables plug-and-play integration with 3rd party sensors/systems. It offers capabilities including system control, data logging, digital processing, global positioning, and telemetry.

The Thiamis includes multiple ports: RS-485, RS-232 (3-multiplexed), SDI-12, 2 USB-C ports, and expansion ports for Analog and Digital I/Os, allowing users to connect virtually any 3rd party sensor. By connecting a 3rd party sensor, you eliminate the need to manually retrieve monitoring data, as all data will be sent wirelessly over a secure cellular or wifi connection to the Airthinx Cloud.

Additional Information

General
Certifications – CE, FCC, PTCRB
Operating Temperature – -30 °C to 75 °C ( -22 F to 167 F)
Power – 4.6 Watt
Input Voltage – 12 VDC, USB-C

Communications
Cellular – 4G LTE / 3G / 2G
WiFi – 802.11 b/g/n
Bluetooth – Bluetooth 4.0
Mesh – Zigbee
GPS – A-GPS, Sensitivity > -165dBm, 3m Accuracy
Antenna – Built-in (2G/ 3G / 4G, GPS, Zigbee, Bluetooth) External MCX Female (Cellular and GPS) [Optional]
SIM Card – Built-in

Temperature Sensor
Range – 0° – 45° C
Resolution – 0.1 °C
Maximum Error – ± 0.5° C from 15° – 30° C

Humidity Sensor
Range – 15 – 75% RH
Resolution – 0.1 %RH
Maximum Error – ± 2 %RH

Barometer Sensor
Range – 300-1100 hPa
Resolution – ± 0.12 Pa
Maximum Error – ± 1.3 Pa

Data Logging
Digital Ports – RS-485, RS-232 (3-multiplexed), SDI-12, 2xUSB-C
Delta Port – Expansion port for Analog and Digital I/Os
Wireless Ports – Mesh, Bluetooth and WiFi
Clock – Real-time
Protocols – ASCII, ModBUS, SDI-12. UMB and more
Memory – Built-in
